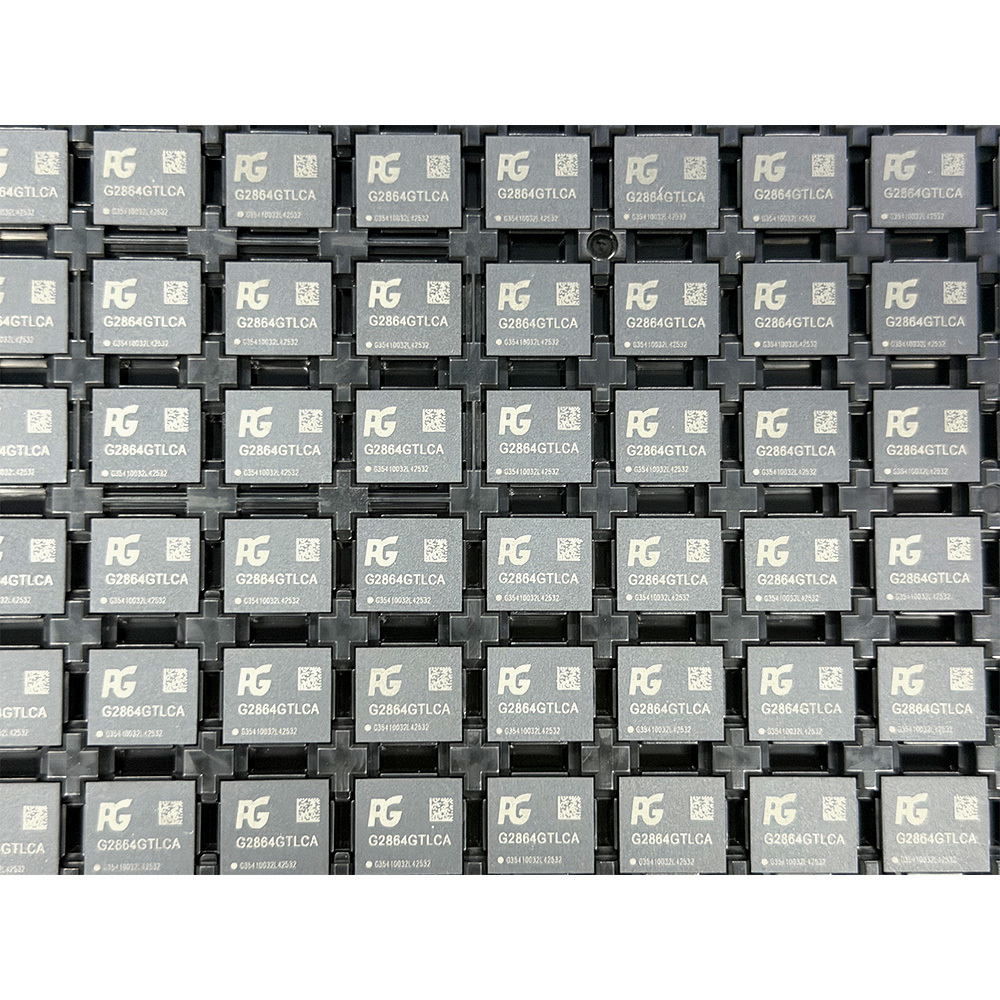

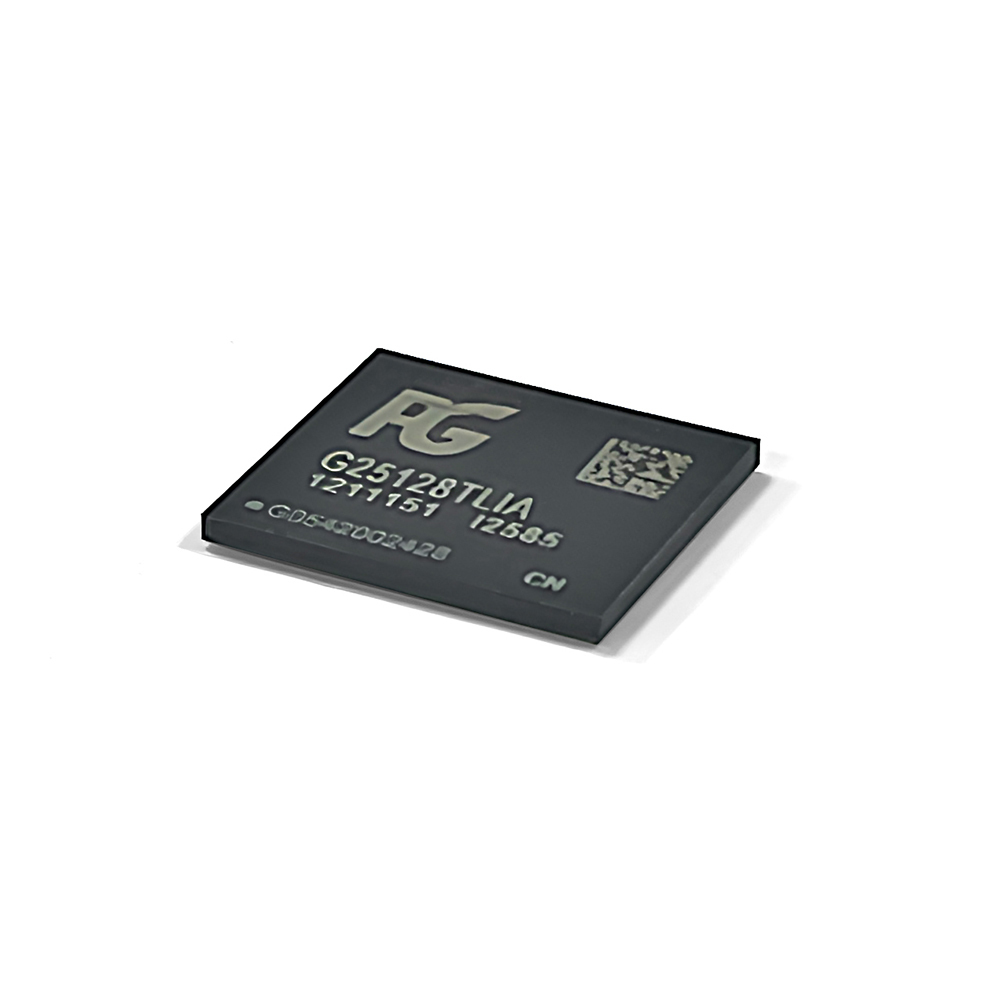

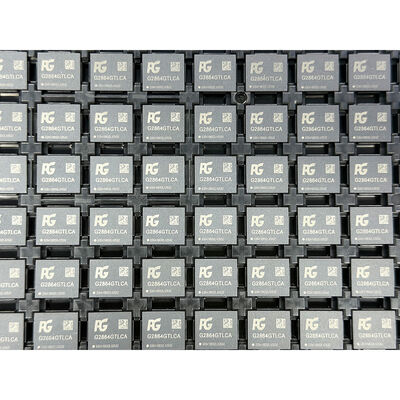

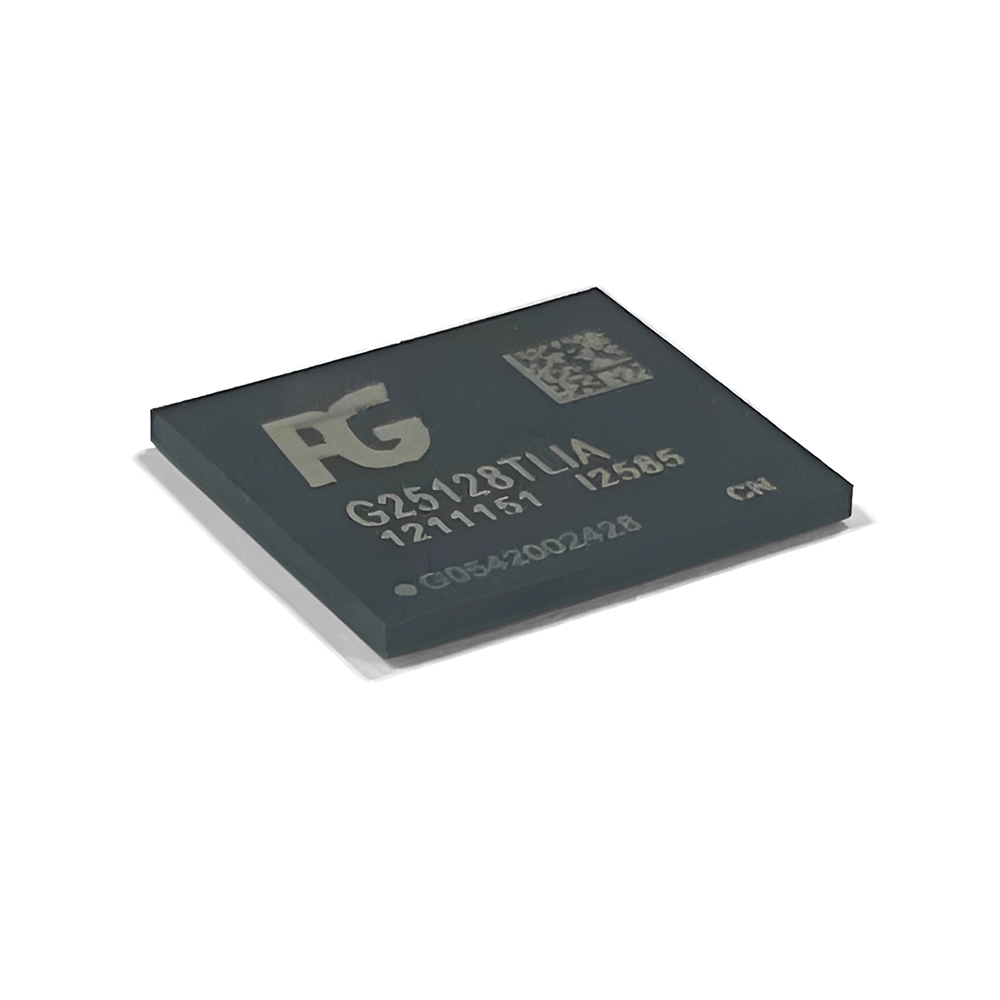

Automotive Embedded Multi Media Card Endurable eMMC BGA 153 Flash IC Component
Product Specification
Place of Origin:
Shenzhen, China
Brand Name:
PG
Model Number:
G2864TLCA/ G28128TLCA/ G28256TLCA
Minimum Order Quantity:
50pcs
Price:
Negotiable
Delivery Time:
10 to 15 days
Payment Terms:
L/C,T/T
Supply Ability:
100K a month
Product Summary
Automotive Embedded Multi Media Card Endurable eMMC BGA 153 Flash IC Component Automotive-grade eMMC is an embedded non-volatile memory chip specifically engineered for the demanding environments of automotive electronics. Utilizing the BGA 153 package, this solution integrates NAND flash, ...
Product Details
Highlight:
Embedded Multi Media Card
,BGA 153 Flash eMMC
,IC Component eMMC 5.1
Product Name:
Automotive Embedded Multi Media Card
Logo Customized Service:
Available
Material:
Plastic
Capacity Options:
64GB, 128GB, 256GB
Origin:
China
Package:
BGA153 Package
Quality:
Good
Read Speed:
330MB/s
Product Description
Automotive Embedded Multi Media Card Endurable eMMC BGA 153 Flash IC Component
Automotive-grade eMMC is an embedded non-volatile memory chip specifically engineered for the demanding environments of automotive electronics. Utilizing the BGA 153 package, this solution integrates NAND flash, controller, and MMC interface into a single chip, fully compliant with automotive standards including AEC-Q100. With core advantages of high reliability, wide temperature resistance, extended durability, and robust protection, it serves as a critical storage solution for multiple applications in intelligent vehicles.
Technical Specifications
| Interface | eMMC 5.1 with HS400 support |
|---|---|
| Capacities | 64GB, 128GB, 256GB |
| Data Transfer Speed | Up to 400MB/s (HS400 mode) |
| Operating Voltage | 3.3V (VCC), 1.8V/3.3V (VCCQ) |
| Temperature Range | -40°C to 105°C |
| Endurance | High endurance for frequent read/write cycles |
| Security | RPMB, secure boot, and write protection |
| Package | BGA (Ball Grid Array) |
| Package Size | 11.5 x 13 x 1 mm |
Core Technologies and Reliability Design
Automotive Certification and Wide Temperature Adaptation
Complies with AEC-Q100 Grade2 (-40℃~105℃) and adapts to temperature variations across automotive environments including engine compartments and cockpits. Certified with IATF16949 quality management standards.
Performance and Power Consumption Optimization
Adheres to JEDEC eMMC 5.1 protocol with HS400 high-speed mode support, delivering sequential read/write speeds up to 330/240MB/s. Features intelligent low-power algorithms and FBA acceleration technology to balance high performance with efficient power consumption.
Packaging and Adaptability

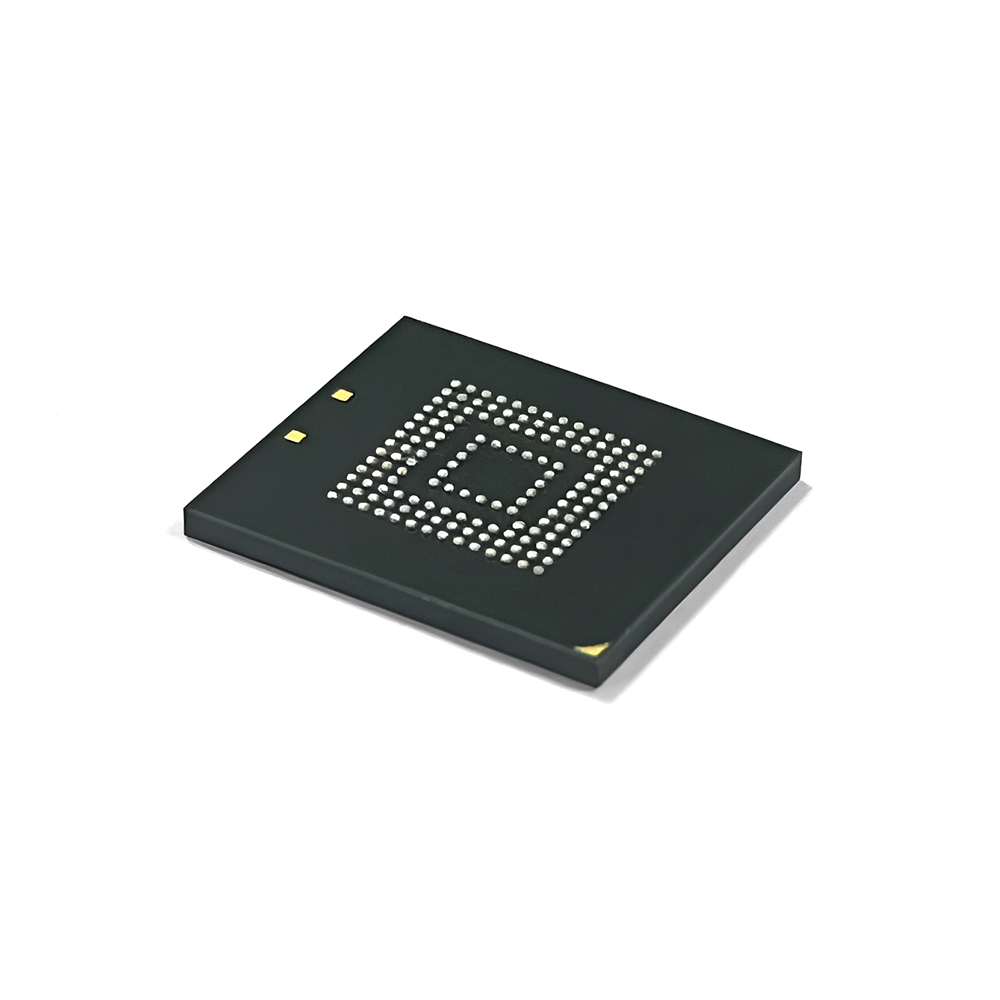

Utilizes 153-ball FBGA package (11.5*13*1mm dimensions). The on-board soldering method enhances vibration resistance, enabling adaptation to the limited space and impact resistance requirements of automotive electronics. Available in capacities ranging from 64GB to 256GB.
