Product Summary
Commercial Grade eMMC 5.1 Embedded Memory eMMC 5.1 embedded memory is engineered for embedded systems, smartphones, tablets, and compact devices, providing integrated storage directly on the device's motherboard. This commercial-grade solution delivers superior data transfer rates with maximum read ...
Product Details
Highlight:
Commercial 64GB EMMC 5.1
,64GB EMMC Flash Memory
,128GB EMMC Flash Memory
Capacity:
32GB-512GB
Read Speed:
Up To 330MB/s
Agreement:
HS400
Write Speed:
Up To 240MB/s
Grade:
Commercial Grade
Choice Of Flash:
MLC/3DTLC/QLC NAND
Product Name:
EMMC5.1
Application:
Tablets And Smartphones
Product Description

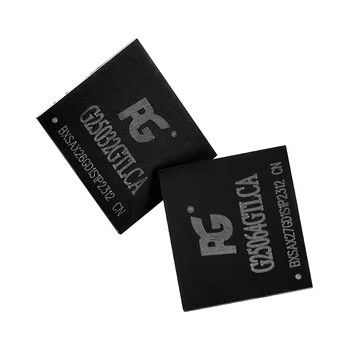

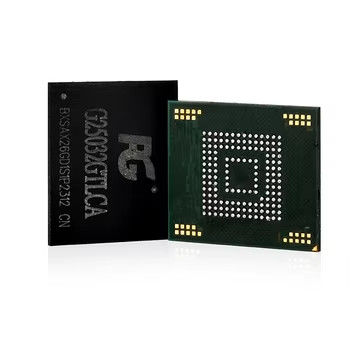

Commercial Grade eMMC 5.1 Embedded Memory
eMMC 5.1 embedded memory is engineered for embedded systems, smartphones, tablets, and compact devices, providing integrated storage directly on the device's motherboard. This commercial-grade solution delivers superior data transfer rates with maximum read speeds up to 330 MB/s and significantly improved write speeds compared to earlier versions, making it ideal for applications demanding fast, reliable storage performance.
CA eMMC 5.1 Technical Specifications
| Model | G2564GTLCB | G25128TLCB | G25256TLCB | G25512TLCB |
|---|---|---|---|---|
| NAND Flash | 3D TLC NAND | 3D TLC NAND | 3D TLC NAND | 3D TLC NAND |
| Capacity | 64GB | 128GB | 256GB | 512GB |
| CE | 1 | 2 | 4 | 4 |
| Read Speed | up to 330MB/s | up to 330MB/s | up to 330MB/s | up to 330MB/s |
| Write Speed | up to 240MB/s | up to 240MB/s | up to 240MB/s | up to 240MB/s |
| Operating Temperature | -25℃~85℃ | -25℃~85℃ | -25℃~85℃ | -25℃~85℃ |
| EP | ≥3000 | ≥3000 | ≥3000 | ≥3000 |
| Packaging Specification | BGA 153 | BGA 153 | BGA 153 | BGA 153 |
| Size | 11.5mm×13mm×1.0mm | 11.5mm×13mm×1.0mm | 11.5mm×13mm×1.2mm | 11.5mm×13mm×1.2mm |
Why Choose Our eMMC Solutions
• Strong research and development capabilities
• Advanced packaging and testing technology
• Complete storage product production line
• Proprietary PG brand focused on storage semiconductors
• Multiple copyright patents and certifications
• High cost-effectiveness and competitive pricing
• Over several years of specialized IC industry experience
