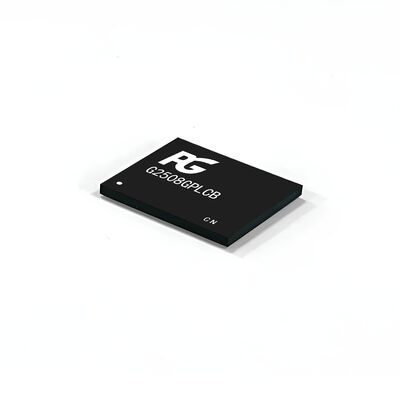

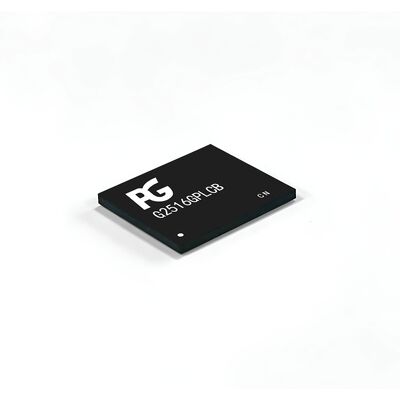

eMMC Flash Memory Module with HS400 High-speed 4GB/8GB/16GB Capacity and Low-power Consumption for Consumer Electronics
Product Specification
Place of Origin:
Shenzhen, China
Brand Name:
PG
Model Number:
G2504GPLCB/G2508GPLCB/G2516GPLCB
Minimum Order Quantity:
50pcs
Price:
Negotiable
Delivery Time:
10 to 15 days
Payment Terms:
L/C,T/T
Supply Ability:
100K a month
Product Summary
EMMC 5.1 High-speed HS400 EMMC 4GB 8GB 16GB Low-power Flash Memory Module Designed for consumer electronics, this low-power flash memory module delivers high-speed performance with comprehensive data protection features. Multiple Protection Designs for Data Security and Reliability Built with a high...
Product Details
Highlight:
Shock & Vibration Resistant
,Long Service Life
,Original Brand Flash
Memory:
Flash
Warranty:
1 Years
Packeage Type:
153BGA
Custom:
Support
Storage Capacity:
4/8/16GB
Standard:
EMMC 5.1
Grade:
Commercial Grade
Write Speed:
Up To 240 MB/s
Product Description
EMMC 5.1 High-speed HS400 EMMC 4GB 8GB 16GB Low-power Flash Memory Module
Designed for consumer electronics, this low-power flash memory module delivers high-speed performance with comprehensive data protection features.
Multiple Protection Designs for Data Security and Reliability
Built with a high-performance flash controller and integrated data protection technologies to ensure secure data storage and stable device operation.
- ECC error checking and correction for automatic error detection and repair
- Wear leveling technology to evenly distribute write operations and extend product lifespan
- Bad block automatic management to real-time shield invalid storage blocks
- RPMB security partition with HMAC SHA-256 encryption for sensitive data storage
- PCB board soldering design with superior shock resistance compared to plug-in SD cards
Technical Specifications - PSLC eMMC 5.1
| Model | G2504GPLCB | G2508GPLCB | G2516GPLCB |
|---|---|---|---|
| NAND Flash | PSLC | PSLC | PSLC |
| Capacity | 4GB | 8GB | 16GB |
| Warranty | 1 Year | 1 Year | 1 Year |
| Read Speed | up to 330MB/s | up to 330MB/s | up to 330MB/s |
| Write Speed | up to 240MB/s | up to 240MB/s | up to 240MB/s |
| Operating Temperature | 0℃~70℃ | 0℃~70℃ | 0℃~70℃ |
| EP | ≥10000 | ≥10000 | ≥10000 |
| Packaging Specification | BGA 153 | BGA 153 | BGA 153 |
| Size | 11.5mm*13mm*1.0mm | 11.5mm*13mm*1.0mm | 11.5mm*13mm*1.0mm |
