PSLC EMMC 5.1 4/8/16GB Emmc Chips PE 30000 High Endurable Emmc BGA 153
Product Specification
Place of Origin:
Shenzhen, China
Brand Name:
NUW
Model Number:
G2504GPLCB/G2508GPLCB/G2516GPLCB
Minimum Order Quantity:
50pcs
Price:
Negotiable
Delivery Time:
10 to 15 days
Payment Terms:
L/C,T/T
Supply Ability:
100K a month
Product Summary
PSLC EMMC 5.1 4/8/16GB Emmc Chips PE 30000 High Endurable Emmc BGA 153 Our high-endurance pSLC eMMC 5.1 embedded memory chips are available in 4GB, 8GB and 16GB capacities, utilizing a standard 153-ball FBGA package and fully compliant with the JEDEC eMMC 5.1 specification.Adopting pSLC technology ...
Product Details
Highlight:
PSLC eMMC
,High Enduable eMMC
,eMMC 4GB
Product Name:
PSLC EMMC 5.1
Nand:
PSLC
Storage Capacity:
4/8/16GB
Write Speed:
Up To 240 MB/s
Condition:
New
Bus Speed:
HS400 (up To 400 MB/s)
Key Features:
Embedded EMMC
Error Correction:
Built-in ECC (Error Correction Code)
Product Description
PSLC EMMC 5.1 4/8/16GB Emmc Chips PE 30000 High Endurable Emmc BGA 153

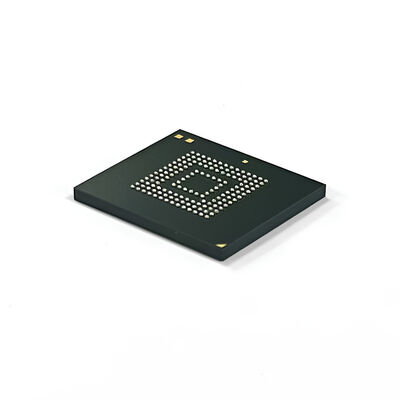

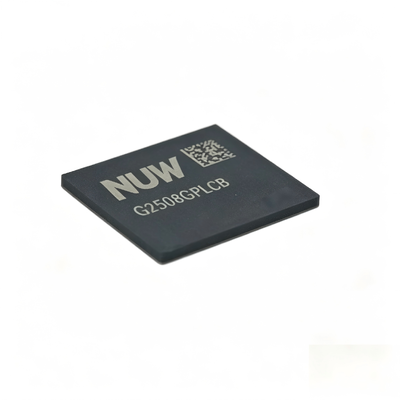

Our high-endurance pSLC eMMC 5.1 embedded memory chips are available in 4GB, 8GB and 16GB capacities, utilizing a standard 153-ball FBGA package and fully compliant with the JEDEC eMMC 5.1 specification.
Adopting pSLC technology at its core, the product configures NAND flash memory cells into a single-bit storage mode, delivering up to 30,000 P/E program/erase cycles — far exceeding that of standard TLC eMMC (approximately 3,000 cycles).
pSLC eMMC 5.1 is specially designed for embedded applications requiring high-frequency write operations and exceptional stability.
Adopting pSLC technology at its core, the product configures NAND flash memory cells into a single-bit storage mode, delivering up to 30,000 P/E program/erase cycles — far exceeding that of standard TLC eMMC (approximately 3,000 cycles).
pSLC eMMC 5.1 is specially designed for embedded applications requiring high-frequency write operations and exceptional stability.
Core Features of pSLC eMMC 5.1
- Interface Standard: eMMC 5.1, supporting HS400 high-speed mode with a maximum transfer rate of up to 400MB/s.
- Capacity Options: 4GB / 8GB / 16GB.
- Package: BGA-153 (11.5×13.0mm), compatible with mainstream embedded motherboard designs.
- Ultra-High Endurance: pSLC mode with 30,000 P/E cycles, greatly extending the service life of equipment.
- Stability & Reliability: Built-in ECC error correction, bad block management and wear-leveling algorithms to ensure data integrity.
Technical Specifications of PSLC eMMC 5.1
| Model | G2504GPLCB | G2508PLCB | G2516PLCB |
|---|---|---|---|
| NAND Flash | PSLC | PSLC | PSLC |
| Capacity | 4GB | 8GB | 16GB |
| Warranty | 1 Year | 1 Year | 1 Year |
| Read Speed | up to 330MB/s | up to 330MB/s | up to 330MB/s |
| Write Speed | up to 240MB/s | up to 240MB/s | up to 240MB/s |
| Operating Temperature0 | 0℃~70℃ | 0℃~70℃ | 0℃~70℃ |
| EP | ≥30000 | ≥30000 | ≥30000 |
| Packaging Specification | BGA 153 | BGA 153 | BGA 153 |
| Size | 11.5mm×13mm×1.0mm | 11.5mm×13mm×1.0mm | 11.5mm×13mm×1.2mm |
