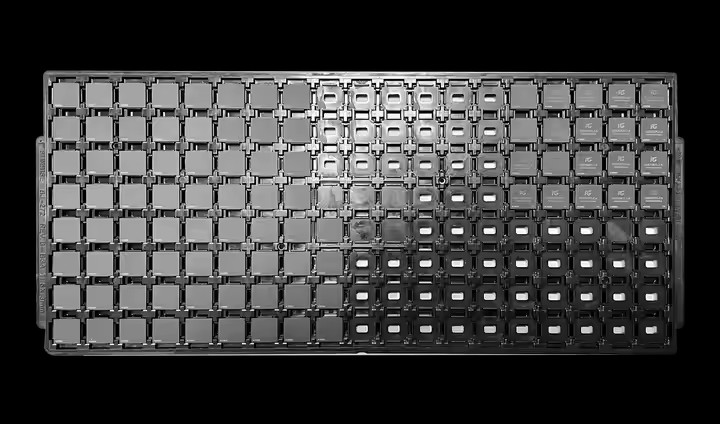

Embedded Multimedia Card EMMC 5.1 64GB 128GB 256GB TLC Flash EMMC
Product Specification
Place of Origin:
Shenzhen, China
Brand Name:
PG
Model Number:
G2864TLCB/G28128TLCB/G28256TLCB/G2564LTCB/G25128LTCB/G25256LTCB
Minimum Order Quantity:
50pcs
Price:
Negotiable
Delivery Time:
10 to 15 days
Payment Terms:
L/C, T/T
Supply Ability:
100K a month
Product Summary
Embedded Multimedia Card EMMC 5.1 64GB 128GB 256GB TLC Flash EMMC PG e∙MMC is an embedded flash memory storage solution. Package size 11.5mm x 13.0mm x 1.0mm 11.5mm x 13.0mm x 1.16mm Operating Voltage range VCC = 2.7V~3.6V (typical 3.3V) VCCQ = 1.7V~1.95V(typical 1.8V), 2.7V~3.6V (typical 3.3V) ...
Product Details
Highlight:
128GB EMMC 5.1
,256GB EMMC 5.1
,64GB EMMC 5.1
Name:
Embedded Multimedia Card
Capacity:
8GB, 64GB, 128GB, 256GB, 512GB
Agreement:
HS400
Read Speed:
Up To 330MB/s
Write Speed:
Up To 240MB/s
Operating Temperature:
-25℃~+85℃
Choice Of Flash:
MLC / 3D TLC / QLC NAND
Operating Voltage:
2.7V - 3.6V
Product Description
Embedded Multimedia Card EMMC 5.1 64GB 128GB 256GB TLC Flash EMMC
PG e∙MMC is an embedded flash memory storage solution.
Package size
- 11.5mm x 13.0mm x 1.0mm
- 11.5mm x 13.0mm x 1.16mm
Operating Voltage range
- VCC = 2.7V~3.6V (typical 3.3V)
- VCCQ = 1.7V~1.95V(typical 1.8V), 2.7V~3.6V (typical 3.3V)
Temperature
- Operating : -25℃ ~ 85℃
- Storage : -40℃ ~ 85℃
Program/Erase Cycle
- >= 2000
Application scenario
1. Smartphones and tablets: eMMC is widely used in mid to low end smartphones and tablets to store operating systems, applications, and user data.
2. IoT devices: smart home devices (such as smart speakers, smart light bulbs), wearable devices (such as smart watches), etc. eMMC has a small size and low power consumption, making it suitable for IoT devices with limited space and power consumption.
