EMMC5.1 256GB 128GB Vibration-Resistant EMMC Passed 1000g Shock Test, Data Security For Factory Equipment 64GB 512GB

50pcs
MOQ
EMMC5.1 256GB 128GB Vibration-Resistant EMMC Passed 1000g Shock Test, Data Security For Factory Equipment 64GB 512GB
Features Gallery Product Description Request A Quote
Features
Specifications
Use Case: Learning Tablets
Operating Temperature: -20°C To 85°C
Package: BGA Package
Choice Of Flash: MLC / 3DTLC/QLC NAND
Grade: Commercial Grade
Sequential Write Speed: Up To 240 MB/s
Operating Voltage: 2.7V - 3.6V
Product Status: New
Quality: 100% Original
Highlight:

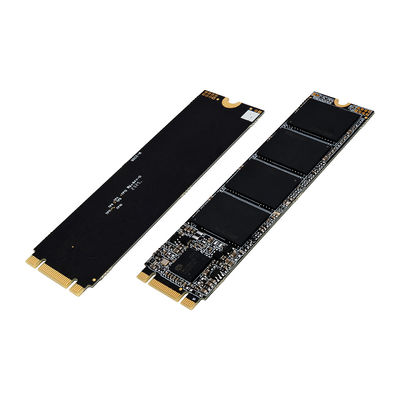

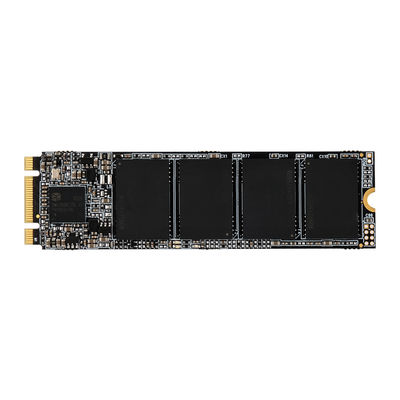

Commercial Internal SSD Hard Drive

,

1Tb M.2 SSD For PC

,

512gb SATA 3 M.2 SSD
Basic Infomation
Place of Origin: China
Brand Name: PG
Model Number: G2864GTLCB
Payment & Shipping Terms
Delivery Time: 3-5 days
Product Description
Vibration-Resistant eMMC 5.1 Storage Solutions
High-performance eMMC 5.1 storage modules designed for industrial applications, featuring exceptional vibration resistance with 1000g shock test certification. These modules ensure reliable data security for factory equipment and industrial automation systems.
Product Specifications
Model G2864GTLCB G28128TLCB G28256TLCB
NAND Flash 3D TLC NAND 3D TLC NAND 3D TLC NAND
Capacity 64GB 128GB 256GB
CE 1 2 4
Read Speed up to 330MB/s up to 330MB/s up to 330MB/s
Write Speed up to 240MB/s up to 240MB/s up to 240MB/s
Operating Temperature -25℃~85℃ -25℃~85℃ -25℃~85℃
EP ≥3000 ≥3000 ≥3000
Packaging Specification BGA 153 BGA 153 BGA 153
Size 11.5mm×13mm×1.0mm 11.5mm×13mm×1.0mm 11.5mm×13mm×1.2mm
eMMC Working Principle
The eMMC operation involves a coordinated interaction between host, controller, and flash memory components. The complete process from command issuance to data storage follows these systematic procedures:
Data Writing Process
  1. The host transmits a write command and target data to the eMMC controller via the MMC interface, simultaneously specifying the data storage address
  2. Upon receiving the command and data, the controller temporarily stores the information in its built-in cache and performs error checking through the ECC module
  3. Using wear leveling algorithms, the controller selects optimal NAND flash memory areas (avoiding bad blocks and heavily worn sectors), converts cached data into flash-readable format, and issues block erase and page write commands
  4. The NAND flash executes erase operations (clearing target block data) and writes new data into designated storage units
  5. Following successful writing, the flash memory returns a completion signal to the controller, which then relays the result back to the host, finalizing the write operation
Industrial-Grade Reliability
These eMMC modules are engineered to withstand harsh industrial environments, featuring vibration resistance certified by 1000g shock tests and wide operating temperature ranges for maximum data security in factory equipment applications.
Tag:

Embedded eMMC5.1

eMMC BGA153

Memory Chip IC eMMC
