Home /Products/eMMC5.1/NUW Brand Embedded Chips PSLC eMMC BGA153 Low Power Consumption eMMC

NUW Brand Embedded Chips PSLC eMMC BGA153 Low Power Consumption eMMC

50
MOQ
NUW Brand Embedded Chips PSLC eMMC BGA153 Low Power Consumption eMMC
Features Gallery Product Description Request A Quote
Features
Specifications
Color: Black
Highlight: HS400 EMMC Embedded Memory IC, Automotive EMMC Embedded Memory IC
Nand Flash: MLC/TLC/QLC
Condition: New
Interface: HS400, HS200, HS, DDR
Operating Temperature: 0°C To +70°C
Highlight:

PSLC eMMC

,

eMMC

,

eMMC 5.1
Basic Infomation
Place of Origin: China
Brand Name: PG
Model Number: eMMC 5.1 with HS400 support
Payment & Shipping Terms
Delivery Time: 3 to 5 days
Payment Terms: L/C,T/T
Supply Ability: 100K a month
Product Description
NUW Brand Embedded Chips PSLC eMMC BGA153 Low Power Consumption EMMC
Product Overview

Our high-endurance pSLC eMMC 5.1 embedded memory chips are available in 4GB, 8GB, and 16GB capacities. Adopting a standard 153-ball FBGA package, the product fully complies with JEDEC eMMC 5.1 specifications.

Built on pSLC technology, the chip configures NAND flash cells for single-bit data storage and achieves up to 30,000 P/E cycles, significantly outperforming conventional TLC eMMC (around 3,000 P/E cycles). This pSLC eMMC 5.1 is engineered for embedded scenarios demanding frequent write operations and outstanding operational stability.

Compatible Devices
  • DVR/NVR video recorders
  • IP cameras
  • Smart access control systems
  • Vehicle monitoring terminals
Core Advantages
Superior Write Endurance

pSLC architecture delivers exceptional write endurance, perfect for 24/7 continuous video storage applications.

Compact Design

The compact BGA153 package supports miniaturized monitoring hardware design and space-constrained applications.

Typical Applications
HD Cameras

Stores HD video streams and supports loop recording, guaranteeing reliable data preservation during critical events.

DVR/NVR Systems

Supports simultaneous multi-channel video writing, stable 7*24-hour surveillance data storage, as well as rapid data search and playback.

Smart Access Control

Stores access logs and facial recognition data. Low power consumption makes it ideal for battery-operated access control equipment.

Core Features of pSLC eMMC 5.1
Interface Standard

eMMC 5.1 with HS400 high-speed mode, maximum transfer speed up to 400MB/s

Available Capacities

4GB, 8GB, 16GB

Package Form

BGA153 (11.5*13.0mm), compatible with most mainstream embedded mainboards

Ultra High Endurance

pSLC technology supports 30,000 P/E cycles to greatly prolong device service life

Stability and Reliability

Integrated ECC error correction, bad block management, and wear leveling algorithms to protect data integrity

Technical Specifications
Parameter Details
Interface eMMC 5.1 with HS400 support
Available Capacities 32GB, 64GB
Data Transfer Speed Up to 400MB/s (HS400 mode)
Operating Voltage 3.3V (VCC), 1.8V/3.3V (VCCQ)
Endurance High endurance for frequent read/write cycles
Security RPMB, secure boot, and write protection
Operating Temperature 0°C to 70°C
Package Size 11.5 x 13 x 1 mm
Package BGA 153 (Ball Grid Array)

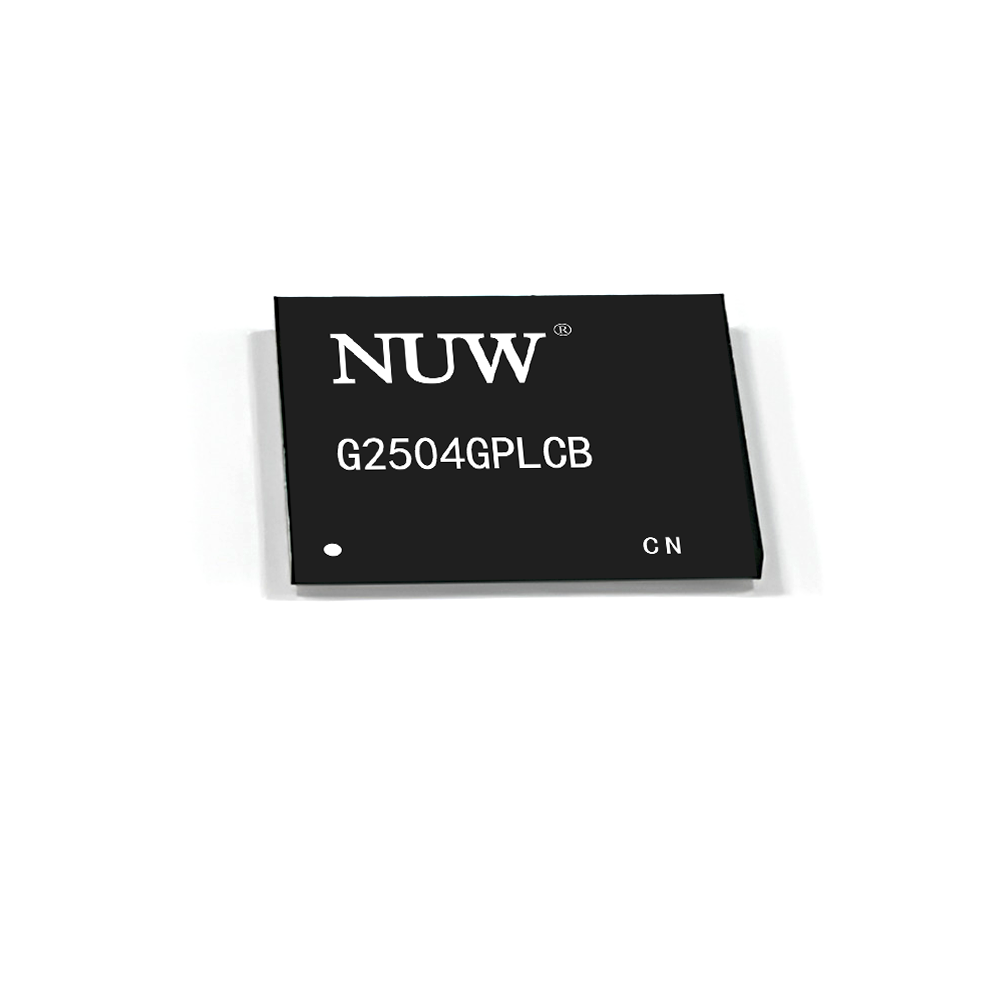

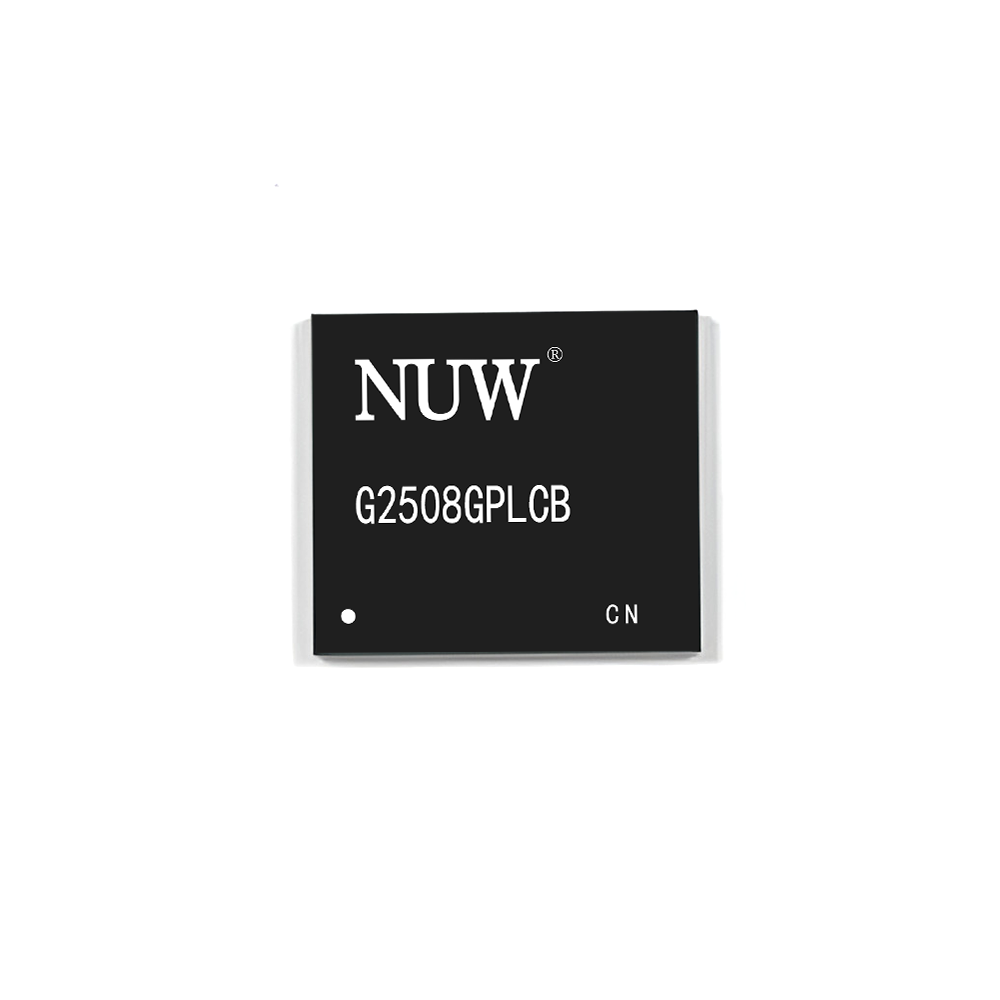

NUW Brand PSLC eMMC BGA153 embedded memory chip product image
Why Choose Our Consumer Grade eMMC 5.1 (NUW, PSLC)
Cost-Effective BOM Optimization

Integrated PSLC NAND flash and onboard controller streamline circuit design and lower overall BOM cost, perfectly suited for mass-production consumer electronic devices.

Stable Daily Performance

Rated for a standard consumer temperature range of 0°C to 70°C, this eMMC chip delivers consistent and reliable operation in daily indoor and regular consumer scenarios.

Easy System Integration

Fully compliant with universal eMMC 5.1 interface standards, enabling simple design adoption and faster time-to-market for embedded consumer products.

Practical Low-Capacity Options

Available in 4GB, 8GB and 16GB capacities to precisely match the basic storage requirements of mainstream lightweight smart devices.

Low Power & Compact Form Factor

Featuring optimized power consumption and a compact BGA153 package, it fits perfectly for space-limited, battery-powered consumer electronics with high energy efficiency demands.
