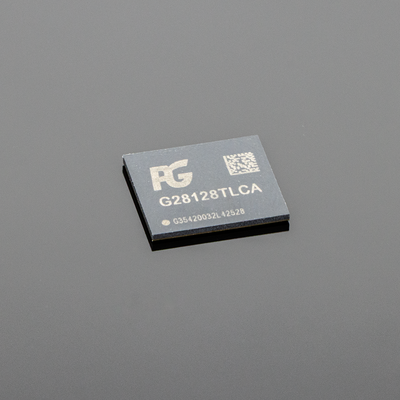

Automotive eMMC 5.1 Embedded IC with 64GB 128GB Storage and -40~105℃ Operating Temperature AEC-Q100 Grade 2
Product Specification
Place of Origin:
Shenzhen, China
Brand Name:
PG
Minimum Order Quantity:
50pcs
Price:
Negotiable
standard packaging:
Default packaging or customized packaging
Delivery Time:
3 to 15 days
Payment Terms:
L/C,T/T
Supply Ability:
100K a month
Product Summary
Industrial-grade TF cards (16-256GB) for dashcams & surveillance. Waterproof, shockproof, X-ray proof with -25℃ to 85℃ operating range. 40,000+ hours continuous recording, U3/V30 speed class for 4K video.
Product Details
Highlight:
Automotive eMMC 5.1
,wide temp -40℃ ~ 105℃
,BGA153 embedded flash IC
Product Name:
Automotive Grade EMMC5.1
Color:
Black
Storage Capacity:
Varies (e.g., 64GB, 128GB, 256GB)
Logo Customized Service:
Available
Form Factor:
BGA (Ball Grid Array)
Size:
11.5x13x1.0/11.5x13x1.2
Operating Temperature:
-40°C To +105°C
Flash Grade:
Grade A
Product Description
Automotive eMMC 5.1 64GB 128GB -40~105℃ Operating Temperature Embedded IC
Automotive eMMC 5.1 64GB 128GB -40~105℃ Operating Temperature Embedded IC
Key Automotive-Grade eMMC5.1 Advantages
Stable Performance Under Wide Temperature Range
Maintains consistent read & write performance from -40℃ frigid cold up to 105℃ high temperature inside engine bays. Eliminates startup lag in cold weather and prevents speed throttling under high temperature, fully adapting to extreme outdoor climate conditions for vehicles.
High Reliability for Strict Automotive Requirements
- Certified with AEC-Q100 automotive reliability standard
- Integrated hardware ECC error correction, automatic bad block management and power-failure protection
- Resists voltage fluctuation and electromagnetic interference (EMC), suitable for unstable vehicle power supply
- Power-loss data protection prevents file corruption caused by sudden power-off or voltage drop when vehicle shuts down
High-Speed eMMC 5.1 Bus
HS400 high-speed mode support handles large-size firmware, offline map packages and loop recording for dashcams without lag during multi-task reading and writing operations.
Long Endurance & Durable Writing
Advanced wear leveling algorithm significantly extends flash lifespan, making it ideal for frequent repeated erasing and writing in dashcams and on-board storage devices.
Core Specifications of Automotive eMMC 5.1
| Item | Specifications |
|---|---|
| Standard | JEDEC eMMC 5.1 Protocol |
| Capacities | 64GB, 128GB |
| Operating Temperature | Automotive wide temperature: -40℃ ~ +105℃ |

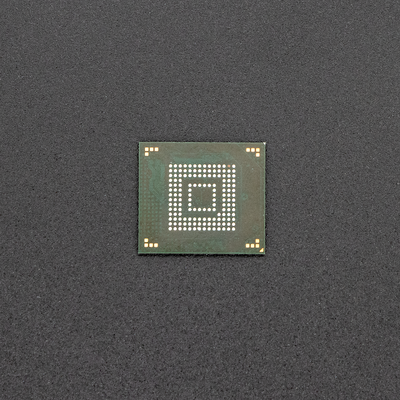

| Package | Standard BGA 153 embedded package |
| Grade | AEC-Q100 Grade 2 Automotive Electronic Grade |
| NAND Type | MLC / Industrial TLC NAND (Optional) |
| Interface Speed | Sequential Read: up to 400MB/s; Sequential Write: up to 200MB/s |
Typical Applications of Automotive eMMC 5.1
- In-Vehicle Infotainment (IVI): Storage for host firmware, offline navigation maps and multimedia audio & video files
- ADAS Advanced Driver Assistance System: Camera video footage, sensor logs and algorithm firmware storage
- Vehicle DVR Dashcam: Continuous loop video recording with nonstop data writing
- Onboard T-BOX Telematics Terminal: Vehicle operation logs, positioning information and embedded program storage
- Embedded storage for new energy vehicle ECUs and instrument main controllers
