Name: Industrial EMMC For IoT Edge Computing

Wafer: KIOXIA

Controller: SMI

Warranty: 3 Years

Write Speed: 240MB/s

Package: BGA153

Material: Plastic

Read Speed: 330MB/s

Highlight:

Industrial SSD for edge computing

KIOXIA wafer SSD 64GB

Solid state drive with good die

Basic Infomation

Place of Origin: China

Brand Name: PG

Payment & Shipping Terms

Delivery Time: 10 to 15 days

Payment Terms: L/C,T/T

Supply Ability: 100K a month

Gallery

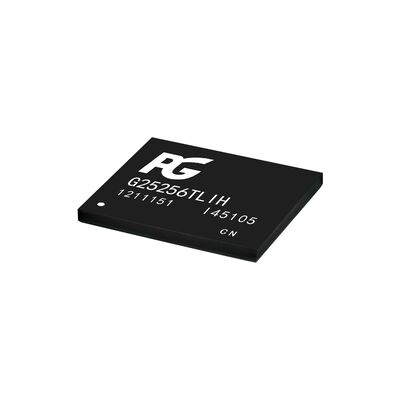

Original New Industrial eMMC Memory Flash Solution 64GB 128GB eMMC for IoT Edge Computing

Product Description

Original New Industrial eMMC Memory Flash Solution

Industrial-grade eMMC memory flash solutions in 64GB, 128GB, 256GB, and 512GB capacities, specifically designed for IoT edge computing and industrial automation applications.

Industrial Grade eMMC Overview

eMMC is a storage chip that integrates NAND Flash memory and flash controller into a standard BGA package. It connects to the main processor through a standard interface, simplifying system design. Compared with consumer-grade eMMC, industrial-grade eMMC maintains stricter standards for temperature range, reliability, lifespan, and quality control.

Industrial Grade eMMC Specifications

Model	G2564GTLIH	G25128TLIH	G25256TLIH	G25512TLIH
NAND Flash	3DTLC NAND	3DTLC NAND	3DTLC NAND	3DTLC NAND
Capacity	64GB	128GB	256GB	512GB
CE	1	2	4	4
Read Speed	up to 330MB/s	up to 330MB/s	up to 330MB/s	up to 330MB/s
Write Speed	up to 240MB/s	up to 240MB/s	up to 240MB/s	up to 240MB/s
Operating Temperature	-40℃~85℃	-40℃~85℃	-40℃~85℃	-40℃~85℃
Packaging Specification	BGA 153	BGA 153	BGA 153	BGA 153
Size	11.5mm13mm1.0mm	11.5mm13mm1.0mm	11.5mm13mm1.0mm	11.5mm13mm1.0mm

Application Scenarios in IoT Gateway and Edge Computing

1. Carrier of Edge Operating Systems and Containerized Applications

Modern edge gateways typically run lightweight operating systems (Ubuntu Core, Yocto Linux, OpenWrt) or container engines (Docker) to deploy various microservice applications including protocol parsing, data filtering, and AI inference.

System Boot Disk: Stores complete operating system kernel, file system, and basic services with extremely high startup reliability requirements
Storage Container Images and Applications: Local storage of multiple container images and applications ensures edge applications continue running independently during network interruptions
Industrial Grade Requirement: System disk failure renders equipment inoperable, requiring costly on-site maintenance. High reliability and power-off protection prevent catastrophic failures

2. Local Buffering and Preprocessing of Time-Series Data

Gateways connect to dozens or hundreds of sensors collecting temperature, pressure, vibration, and other data at high frequencies (typically once per second).

Data Buffer Pool: Reliably stores collected raw data locally during network congestion or cloud service interruptions to prevent data loss, with automatic transmission resumption when connectivity is restored
Preprocessing Workspace: Cleans, compresses, formats, aggregates, and calculates raw data (generating 5-minute averages) to create simplified data for upload, reducing bandwidth and cloud storage costs
Industrial Grade Requirement: Continuous high-frequency writing of small files demands exceptional storage write durability (DWPD/TBW). Consumer-grade eMMC would quickly wear and fail under such operational loads
