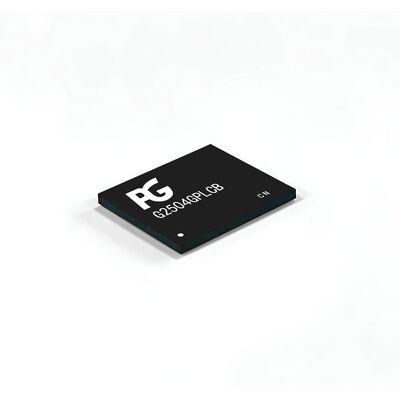

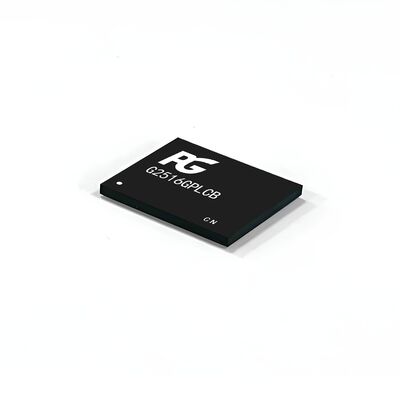

eMMC 5.1 Embedded Storage with HS400 Interface for High-Speed Transmission and Low Power Consumption in Smart TVs & Set-Top Boxes
Product Specification
Place of Origin:
Shenzhen, China
Brand Name:
PG
Model Number:
G2504GPLCB/G2508GPLCB/G2516GPLCB
Minimum Order Quantity:
50pcs
Price:
Negotiable
Delivery Time:
10 to 15 days
Payment Terms:
L/C,T/T
Supply Ability:
100K a month
Product Summary
eMMC 5.1 8GB 16GB 4GB Consumer Grade eMMC 5.1 Embedded Storage for Smart TV & Set-Top Box High-performance embedded storage solution designed for smart TVs and set-top boxes, delivering reliable performance and extended lifespan. Core Performance Features Mainstream eMMC 5.1 High-Speed Interface ...
Product Details
Highlight:
Dust & Weather Resistant
,Reliable Data Security
,Mini SMD Size
Compatibility:
Tablet PC/ Set-top Box
Agreement:
HS400
Write Speed:
240MB/S
Origin:
SZ
Power Consumption:
Low Power With Power-saving Modes
Use Case:
Learning Tablets
Operating Voltage:
2.7V - 3.6V
Custom:
Support
Storage Apacity:
16GB 8GB 4GB
Products Status:
New
Product Description
eMMC 5.1 8GB 16GB 4GB Consumer Grade eMMC 5.1 Embedded Storage for Smart TV & Set-Top Box
High-performance embedded storage solution designed for smart TVs and set-top boxes, delivering reliable performance and extended lifespan.
Core Performance Features
Mainstream eMMC 5.1 High-Speed Interface
Features the standard eMMC 5.1 high-speed interface with HS400 transmission mode, delivering maximum sequential read speeds of 270MB/s and write speeds of 210MB/s. Ensures faster app startup, smooth video playback, and seamless multi-task switching without loading delays. Backward compatible with eMMC 4.5 for broader device compatibility and easy upgrades.
Stable Performance & Long-Term Reliability
Built with high-performance controllers and SLC cache architecture with optimized read/write algorithms. Maintains stable random read/write performance without speed degradation over time. Features intelligent bad block management and wear leveling technology to ensure consistent performance with frequent data writing, extending product lifespan for long-term consumer use.
Technical Specifications - PSLC eMMC 5.1
| Model | G2504GPLCB | G2508GPLCB | G2516GPLCB |
|---|---|---|---|
| NAND Flash | PSLC | PSLC | PSLC |
| Capacity | 4GB | 8GB | 16GB |
| Warranty | 1 Year | 1 Year | 1 Year |
| Read Speed | up to 330MB/s | up to 330MB/s | up to 330MB/s |
| Write Speed | up to 240MB/s | up to 240MB/s | up to 240MB/s |
| Operating Temperature | 0℃~70℃ | 0℃~70℃ | 0℃~70℃ |
| EP | ≥10000 | ≥10000 | ≥10000 |
| Packaging Specification | BGA 153 | BGA 153 | BGA 153 |
| Size | 11.5mm×13mm×1.0mm | 11.5mm×13mm×1.0mm | 11.5mm×13mm×1.0mm |
