SSD controller: SMI2259xt2 |
Storage particles: Kioxia |
DDR: no |
|
Interface: SATA III |
Agreement: SATA agreement V3.2 |
Appearance: 2280: 80mmx22mmx3.9mm |
Connector: M.2 NGFF |
Capacity: Standard product capacity:128GB,256GB,512GB,1TB,2TB Enterprise grade product capacity:120GB,240GB,480GB,960GB,1920GB |
Read and write performance: Maximum continuous reading:540MB/S Maximum continuous writing:480MB/S |
Operating Voltage:3.3V±5% | Power Consumption:Standby mode≤0.7W,Operation≤4.0W |
operation temperature: Industrial temperature range(I):-20~70℃ Wide temperature range(W):-40~85℃ |
Storage temperature: -50~95℃ |

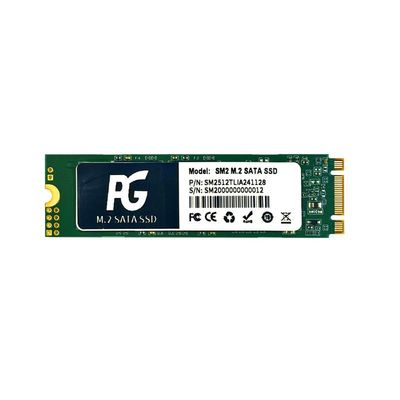

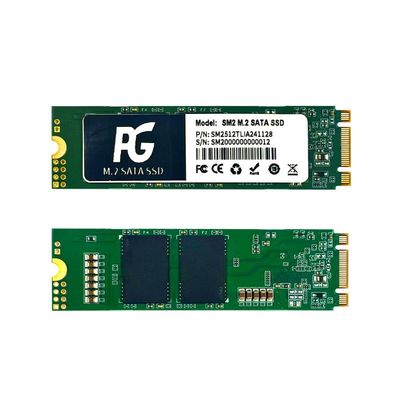

Industrial Grade Interno SSD Size
Physical appearance | Size (mm) | Connector | Input operating voltage |
2280 | 2280: 80mmx22mmx3.9mm | M.2 NGFF | 3.3V±5% |
Features of Industrial Solid State Dirve
Nand Flash: 3D TLC industrial grade nand flash with P/E greater than or equal to 3000 (1000~3000 times for commercial grade SSD) are used for industrial grade SSD, combined with LDP/ECC error checking mechanism to reduce data error rate to below 10 ^ -15.
Main control chip: Industrial grade main control integrated temperature sensor and dynamic thermal protection module, which can automatically adjust the frequency according to the ambient temperature; Commercial grade SSD controllers focus more on read and write speed and have simpler heat dissipation designs.
Capacitor configuration: The industrial standard product has a built-in large capacity tantalum capacitor, which provides sufficient power to complete data writing in case of sudden power outage, avoiding data loss; Ordinary SSDs are designed with power-off protection.
Application of Industrial Grade Interno SSD
