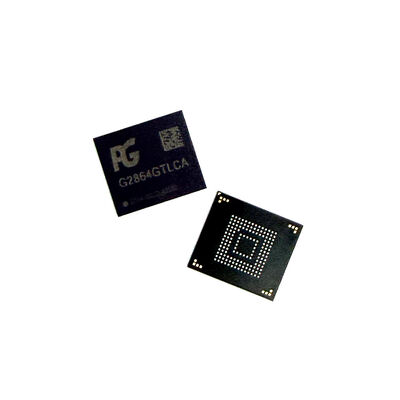

EMMC5.1 32GB Automotive-Grade EMMC 3-Second Cold Boot At -30℃ Stable Compatibility For Car Navigation 128GB 64GB 256GB 32GB
Product Specification
Place of Origin:
Shenzhen, China
Brand Name:
PG
Model Number:
G2864TLCB/G28128TLCB/G28256TLCB/G2564LTCB/G25128LTCB/G25256LTCB
Minimum Order Quantity:
50pcs
Price:
Negotiable
Delivery Time:
10 to 15 days
Payment Terms:
L/C,T/T
Supply Ability:
100K a month
Product Summary
EMMC5.1 32GB Automotive-Grade EMMC 3-Second Cold Boot At -30℃ Stable Compatibility For Car Navigation 128GB 64GB 256GB 32GB High-performance automotive-grade eMMC 5.1 storage solution featuring 3-second cold boot capability at -30℃ with stable compatibility for car navigation systems. EMMC5.1 ...
Product Details
Highlight:
OEM emmc factory
,Automotive-Grade EMMC
,EMMC5.1 32GB
Storage Apacity:
256GB 64GB 128GB
Compatibility:
Tablet PC/ Set-top Box
Nand Flash Type:
3D NAND
Interface:
HS400 (400 MB/s)
Capacity Range:
64GB To 256GB
Warranty:
1 Year
Data Retention:
10 Years
Product Status:
New
Voltage:
1.8V / 3.3V
Product Description
EMMC5.1 32GB Automotive-Grade EMMC 3-Second Cold Boot At -30℃ Stable Compatibility For Car Navigation 128GB 64GB 256GB 32GB
High-performance automotive-grade eMMC 5.1 storage solution featuring 3-second cold boot capability at -30℃ with stable compatibility for car navigation systems.
EMMC5.1 Specification
| Model | G2864GTLCB | G28128TLCB | G28256TLCB |
|---|---|---|---|
| NAND flash | 3DTLC NAND | 3DTLC NAND | 3DTLC NAND |
| Capacity | 64GB | 128GB | 256GB |
| CE | 1 | 2 | 4 |
| Read speed | up to 330MB/s | up to 330MB/s | up to 330MB/s |
| Write speed | up to 240MB/s | up to 240MB/s | up to 240MB/s |
| Operating temperature | -25℃~85℃ | -25℃~85℃ | -25℃~85℃ |
| EP | ≥3000 | ≥3000 | ≥3000 |
| Packaging specification | BGA 153 | BGA 153 | BGA 153 |
| Size | 11.5mmx13mmx1.0mm | 11.5mmx13mmx1.0mm | 11.5mmx13mmx1.2mm |
Data Reading Process
- The host sends a "read command" and the storage address of the target data to the eMMC controller
- After parsing the command, the controller issues a "page read" command to the NAND flash memory, specifying the storage unit to be read
- The NAND flash memory reads the data at the specified address and transmits it to the controller's cache
- The controller performs error detection and correction on the read data through the ECC module to ensure data integrity
- The controller transmits the corrected correct data to the host through the MMC interface to complete the reading process
Throughout the process, the controller always assumes the role of "intermediate coordination", shielding the underlying complex operations of NAND flash memory (such as bad block processing and wear leveling), so that the host only needs to complete data storage through standardized MMC commands, which greatly simplifies the difficulty of software development on the host side.
