Industrial Grade eMMC5.1 with Wide Temperature Range -40°C to +105°C PE30000 and pSLC Mode NAND

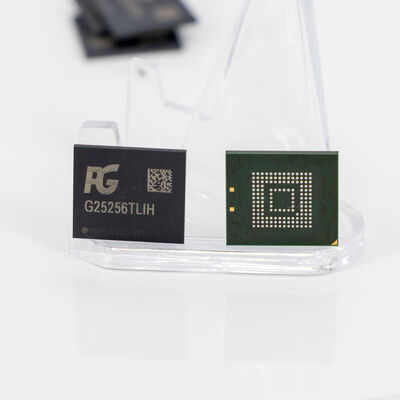

This Industrial Grade eMMC5.1 memory chip operates in pSLC mode, delivering 30,000 program and erase cycles for demanding industrial workloads that write data continuously. Combined with a wide -40°C to +105°C operating temperature range, it is engineered for equipment where storage endurance and thermal resilience are both critical.

The chip runs a JEDEC eMMC 5.1 controller with the HS400 interface and uses pSLC mode to trade raw capacity for significantly higher write endurance. It is available in 32GB, 64GB and 128GB capacities and delivers read speeds up to 400 MB/s, making it ideal for long-life logging and recording applications.

• 30,000 P/E cycle endurance for write-intensive workloads
• pSLC mode maximizes NAND lifespan for long-life deployment
• Wide -40°C to +105°C operating temperature range
• Read speeds up to 400 MB/s over the HS400 interface
• Ideal for continuous recording and logging applications
• Full batch traceability supports quality management

• Continuous data loggers and event recorders
• Condition monitoring and predictive maintenance
• Industrial automation and SCADA terminals
• Energy metering and billing data systems
• Transportation telematics and fleet recorders

pSLC mode programs each cell to store fewer bits, which reduces cell stress and dramatically increases the number of program and erase cycles the NAND can sustain.

The pSLC version is rated for 30,000 program and erase cycles, making it suitable for continuous write and long-life industrial applications.

Because pSLC mode trades capacity for endurance, this chip is offered in 32GB, 64GB and 128GB capacities.

It operates reliably from -40°C to +105°C, supporting harsh industrial environments.

For write-intensive industrial systems that require maximum endurance and wide temperature operation, this pSLC Industrial Grade eMMC5.1 chip with 30,000 P/E cycles is the right choice. Contact us to discuss your endurance requirements and capacity planning.

The JEDEC eMMC 5.1 standard combines a NAND flash memory array and controller into one packaged component, which simplifies board design while delivering predictable read and write performance. With the HS400 interface, command queuing, secure trim and device health reporting, eMMC 5.1 offers the speed and manageability that modern embedded systems require. It also maintains backward compatibility with earlier eMMC versions, providing a clear upgrade path for existing designs and reducing engineering effort during platform migration.

Every Industrial Grade eMMC5.1 chip is manufactured under strict process control and 100% tested before shipment. Aging tests, temperature cycling and endurance screening help verify consistent performance and long-term data retention across the batch. Full lot-level traceability documentation is provided, and the products comply with RoHS, CE and ISO 9001 requirements to support dependable supply-chain management and easy regulatory review.

• JEDEC eMMC 5.1 compliance with HS400 high-speed interface
• Industrial-grade -40°C to +105°C operating temperature range
• 3D NAND with efficient wear-leveling management
• 100% tested with full batch traceability documentation
• RoHS, CE and ISO 9001 compliance
• Dedicated engineering support for design-in and sampling
