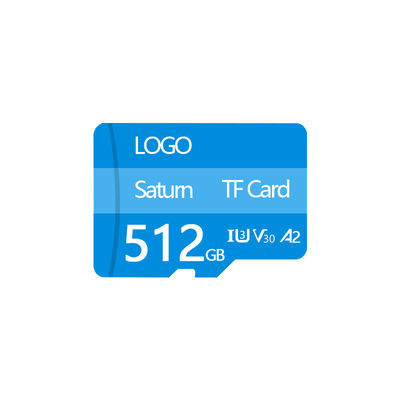

High Speed TF Card Original 512GB Micro TF SD Card 256GB Memory Card 32GB 64gb Class 10 A1 A2 128G For Phone

Negotiable
Price
High Speed TF Card Original 512GB Micro TF SD Card 256GB Memory Card 32GB 64gb Class 10 A1 A2 128G For Phone
Features Gallery Product Description Request A Quote
Features
Specifications
Capacity: 512GB
Color: Customizable
Package: Customizable
Read Speed: 180MB/s
Write Speed: 135MB/s
Speed Class: Class 10
File System: FAT32/exFAT
Basic Infomation
Place of Origin: China
Brand Name: PG
Certification: CE/ROHS
Model Number: S25512TLCA
Payment & Shipping Terms
Delivery Time: 3 to 15 days
Payment Terms: L/C, T/T
Supply Ability: 100K a month
Product Description
High Speed TF Card Original 512GB Micro TF SD Card 256GB Memory Card 32GB 64gb Class 10 A1 A2 128G For Phone


Ultra High Definition
4K UHD ultra high definition playback with UHS-I and video speed level 30 (V30).

Low-power Consumption
Large capacity QLC supports low voltage and low power consumption, ensuring longer device usage time

High Speed Reading and Writing
AS advanced ECC error correction technology plus DDR104, A1 level program loading, UP 90MB/s Read, 50MB/s Write
SA advanced LDPC error correction technology plus DDR200, A2-level program loading, UP 180MB/s Read, 135MB/s Write

Commercial Applications
The capacity of this card ranges from 32GB to 1TB and can be used to store various business applications such as
e-learning, portable audio, IP cameras, dash cams, wearable smart devices, Android devices, game consoles, etc.




TF Card Specification

High Speed Memory Card Memory Card
Controller AS/AK:16GB-256GB,SA:256GB-2TB
Interface SD6.1
Capacity 16GB/32GB/64GB/128GB/256GB/512GB/1TB: UHS-I
Working Voltage 2.7V-3.6V:16GB-256GB,3.3V/1.8V:512GB-2TB
Speed Level C10, U3, V30, A1, A2
Reading and Writing Speed A1:read speed 90MB/s;write speed 50MB/s(TLC)
Reading and Writing Speed A2:read speed 180MB/s;write speed 135MB/s(TLC)
File System 16GB-32GB:FAT32;64GB-2TB:exFAT
Compatibility Standards Compatible with SD(XC) supporting host devices
Operating Temperature Range 0°C-70°C
Storage Temperature Range -25°C-85°C





TF card performance standards
In addition to capacity, the performance of TF cards (i.e. data reading and writing speed) is also very important, especially when used for high-definition video recording, game storage, or large file transfers. The performance of TF cards is usually identified by speed class:

  • Class 2, 4, 6, 10: Indicates the lowest continuous write speed, Class 10 is currently the most common standard, representing a minimum write speed of 10MB/s.
  • UHS-I, UHS-II, UHS-III: These are high-speed interface standards, with UHS-I typically reaching speeds of up to 104MB/s, and UHS-II and UHS-III higher.
  • A1, A2: These marks indicate that TF cards support application performance, such as quickly launching and running applications, especially for Android smartphones and other high-performance devices.



  • TF card is the old name of microSD card, usually used in smartphones, digital cameras, tablets and other devices.
  • It has the advantages of compact and portable, capacity expansion, convenient data transmission and so on.
  • Due to its small size and wide compatibility, TF cards have been widely used in electronic devices and are one of the common memory card types at present.
